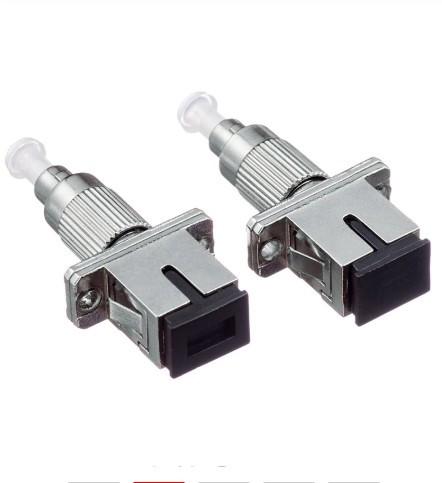

Multimode FC Male To SC Female Hybrid Optic Adapter
FC male to SC Female Hybrid SC-FC Fiber optic Adapter , Zinc or Copper alloy Metal material Coupler
Description:
The FC-SC fiber optic adapter of connector : "SC" connector is a standard square joint, which uses engineering plastics, which has the advantages of high temperature resistance and not easy oxidation. "FC" connector is a metal connector and is generally used on the ODF side. The metal connector can be inserted and removed more times than plastic
We provide Products, AS LC-SC/APC,LC-SC/PC,ST-LC,FC-LC,ST-SC,FC-SC,ST-FC ,etc.
Features:
Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatible
Available without flanges or with flange for duplex, saving panel space
Meet JIS5974 and bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts compliant with ROHS
Application:
Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP
Specification:
| Hybrid adapter type | SC(Female) to FC(Male) |
| Fiber tyle | SM 9/125 |
| Insertion Loss | 1310nm<0.3dB 1550nm<0.3dB |
| Return Loss | 1310nm>50dB 1550nm>50dB |
| Material | Zirconium dioxide ceramic |
| weight | 15g |
| size | 4.6cm |
Fiber Optic adapter ordering guide:
| Adapter type | FC, SC, ST, LC, MU, MTRJ, E2000, D4 and hybrid: FC-SC, FC-ST, SC-ST, SC-LC, LC-ST,SC-SC, LC-LC, E2000-FC, E2000-SC |
| Mode type | Singlemode, Multimode or APC |
| Fiber count | Simplex,Duplex or Four cores |
| Sleeve | Ceramic/Zirconia sleeve,made in China or Japan |
| Housing color | Standard(Blue/Beige/Green) or OEM color, with or without flange available |
| Packing | Normally polybag+carton box, can be customized |
